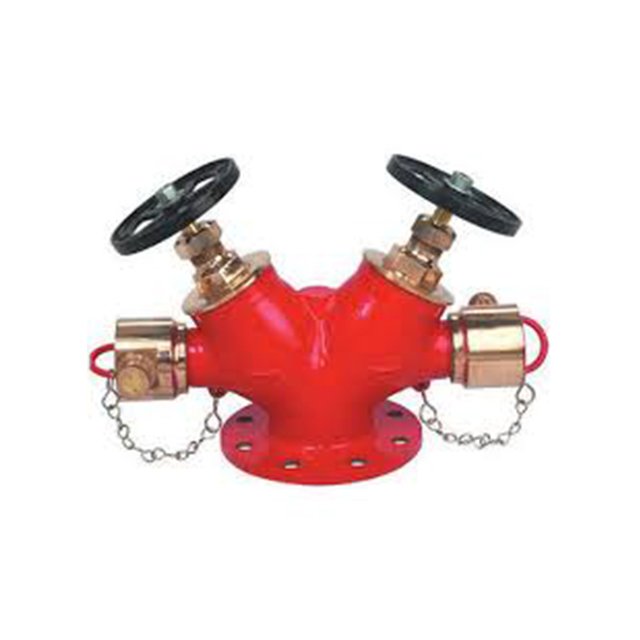

Double Headed Fire Hydrant Valve

Double Headed Fire Hydrant Valve

Category
  • Model : 2-Way-ICLV-01
  • Type : Right Angle Landing Valve Flange
  • Pressure Rating : Low Pressure Valve
  • Working Pressure : 12 Bar Maximum
  • Outlet : Brass (2.5”) male Instantaneous BS-336
  • Inlet : 4” Flange 150 Class 190 PCD
  • Finish : Wheel is BLACK and body to RED

Defender landing valves are suitable for installation on wet risers for fire fighting purposes with permanently charged
water from a pressurized supply.
The landing valves are Straight Through type with flanged inlet and delivery hose connection and blank cap complying
with BS 336:2010 standard.
The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 12 bar.
FEATURES
Body material Cast Iron and Coupling in Brass material.
Hand wheel material made of grey cast iron to BS EN 1561
Blank cap material made of ABS Plastic
Possible to replace the gland seal when under pressure with the valve fully closed
Disc facing rubber is of replaceable type
Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use
The hand wheel is BLACK painted and body to RED
